Following are sequence photos of the build of a MAXI V8---
185 lb Billet for the top case. Final weight is 16 lbs.
![](/i/MAXI V8/P1.jpg)
Lots of chips
![](/i/MAXI V8/P4_4th_AXIS_MACHINING.jpg)
Side profile:
![](/i/MAXI V8/P8_rough_profile_cut.jpg)
Finish cut:
![](/i/MAXI V8/P9_Finish_side_profile_cut.jpg)

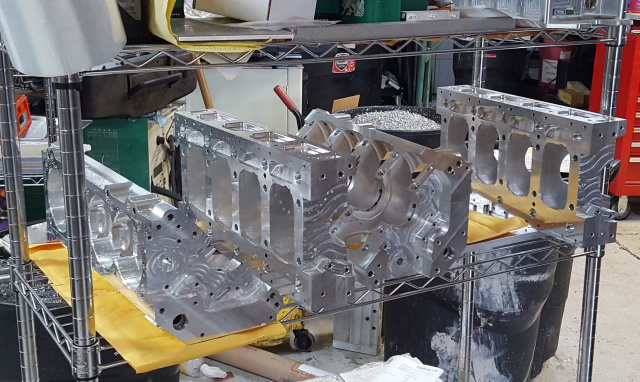

80% done:
Case spin on the Haas
