Engine Dyno Controls:

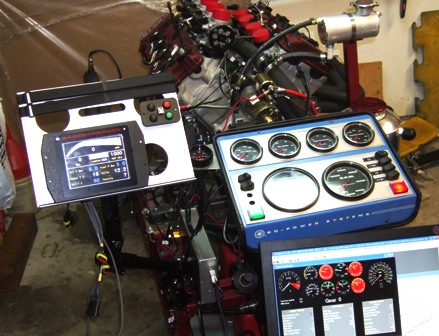

The water brake has both a hydraulic and an electronic load cell. The electronic load cell information is logged in the ECU with all other engine parameters which is downloaded to Excel. Also shown here is the X-Dash display unit.
