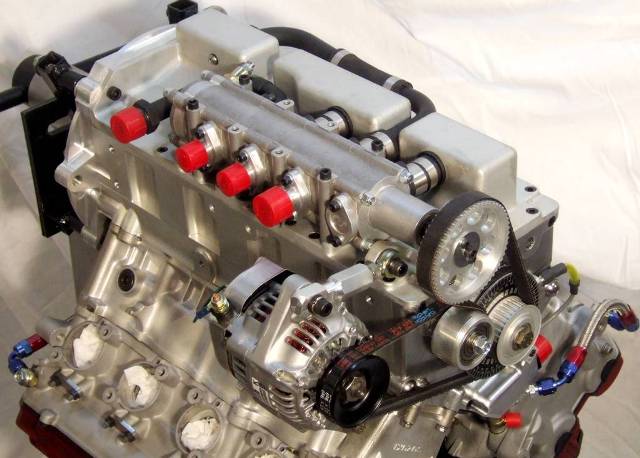

Sump for 516 Xtrac application:

The pump could not go on the side of the engine because the driveshaft occupies that space on the transaxle. With the alternator on the other side, the pump went on the bottom. This time it was sunk into the billet sump to maximize ground clearance.
