H2 BUSA ENGINE SPECS.

SPECIFICATIONS H2:
  • In line 4 cylinder
  • 1.3 to 1.6 liter capacity
    • 81mm bore x 63mm stroke (1.3 liter)
    • 84mm bore x 63mm stroke (1.4 liter)
    • 81mm bore x 72mm stroke (1.5 liter) - recommended for turbo aplications
    • 84mm bore x 72mm stroke (1.6 liter)
  • Twin cam, 16 valve driven by internal silent chain
  • 175 to 250 hp NA
  • 11,000 max rpm
  • 150 lbs with ancillaries
  • Dry sump oil system with 4 stage pump
  • Billet 6160-T6 crankcase and sump
  • Flywheel accepts 5.5" clutch
  • Available in kit for assembly with a donor Suzuki Hayabusa engine

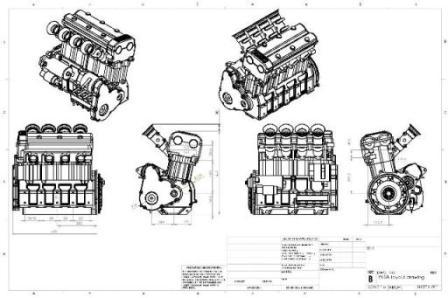

              (click on image to retrieve .pdf drawing file)
