Low profile dry sump:

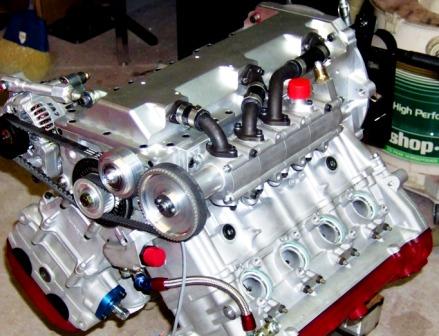

Here the low profile dry sump is shown with the compact connections to a 4 stage Pace pump. The 4th stage is a pressure stage. The sump is 115mm from bottom to the crank center.
